High-performance and energy-efficient solutions, WEG frequency inverters use cutting-edge technology for the speed variation of three-phase induction motors. Presenting a modern design and easy installation, they can be used in different industry segments, streamlining operations and contributing to environmental conservation.

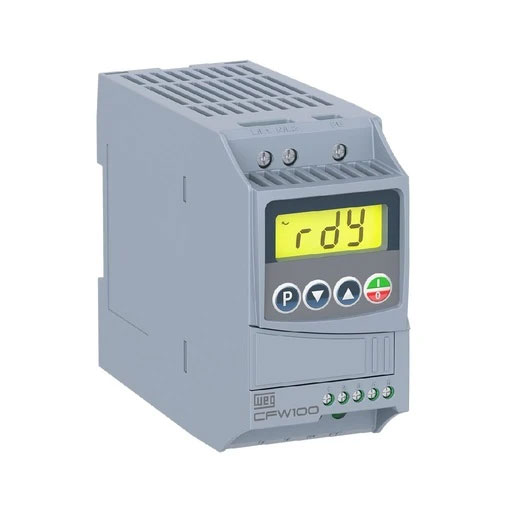

Variable Speed Drive CFW100 G2
The smallest Drive on the market. The CFW100 covers power levels from 0.18 to 0.75 kW (0.25 to 1 HP).
Main characteristics
Output current 1.6 to 7.3 A. Nominal output power 0.18-1.5kW / 0.25 - 2 hp;
Single-phase power supply - 100-127V / 200-240V;
Vector (VVW) or Scalar (V/F) control;
Plug-and-play functionality;
Built-in operating interface (HMI);
Digital inputs;
Surface mounting (with PLMP accessory) or DIN rail mounting;

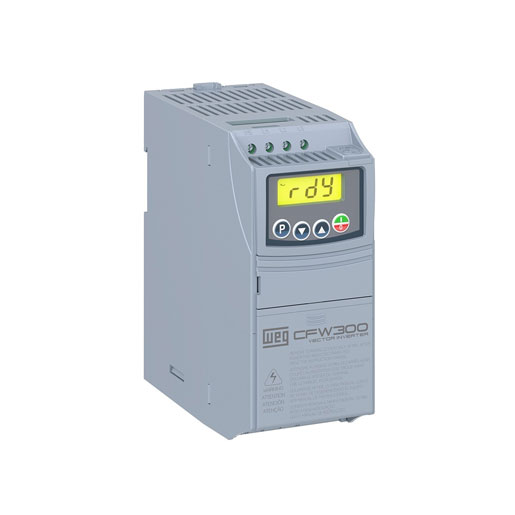

The CFW300 variable speed drive is a high-performance VSD for three-phase induction motors, ideal for applications on machines or equipment that require precise control and easy operation. It features compact size, contactor-style electrical installation, selectable WEG vector control (VVW) or scalar control (V/F), built-in operating interface (HMI), SoftPLC, free WPS programming software and plug-in accessories that may be added to provide extended functionalities, making it a flexible solution of excellent cost-effectiveness.
Main Features
Rated output current from 1.1 to 15.2 A, (0,25 HP / 0,18 kW to 5 HP / 3,7 kW) 100-127 V, 200-240 V or 380 V;
4 PNP or NPN digital inputs, 1 relay output 0.5 A / 250 V ac, 1 analog input 0-10 V dc / 4-20 mA
3C2 coating class (IEC 60721-3-3) on the internal circuits
Energy savings
Easy installation
Flash Memory Module (accessory)
Built-in operating interface (HMI)
Vector (VVW) or scalar (V/F) control modes
Plug-in modules: RS485, RS232, CANopen, Profibus-DP, Ethernet, Potentiometer, USB, Encoder, Infrared, Expansion of inputs and outputs, RFI filter.

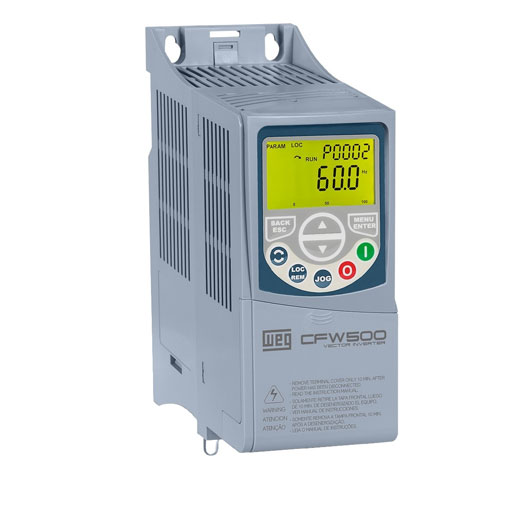

With a modern design and power ranging from 0.25 to 175 cv, the CFW500 frequency inverter is a high-performance variable speed drive, which assists in controlling the speed and torque of three-phase induction motors. The device offers sensorless vector, vector with encoder or scalar control modes, permanent magnet motor control, SoftPLC, which adds PLC (Programmable Logic Controller) functions, STO and SS1 Safety Functions, Pump Genius, which brings dedicated pumping functions, and selectable plug-in modules, providing a flexible and optimized solution for any application.
Main Features
Output current from 1.0 to 211 A (0.25 to 175 cv);
Single-phase or three-phase supply voltage 200-240 V or 380-480 V;
Scalar Control (V / F), Vector Control (VVW), Sensorless Vector or Vector with Encoder Control and Permanent Magnet Motor Control (VVW PM);
Selectable plug-in modules;
Plug and Play philosophy;
Built-in operating and programming interface (HMI);
Built-in RS485 port (in any selected plug-in module);
Pump Genius: functions dedicated to driving pumps;
Safety Function: STO and SS1 level SIL 3 / PLe;
SoftPLC - built-in PLC functionalities;
Braking IGBT (available from frame B);
3C2 or 3C3 protection class for application in environments with corrosive chemicals;
IP20 (standard) and NEMA1 (optional) protection ratings;
Fan with quick exchange system;
Internal RFI filter (optional);
USB communication port (CFW500-CUSB accessory);
Free WLP and WPS programming software applications are available at Softwares.
